2400-AWD(cut off link)
The Tuners Choice

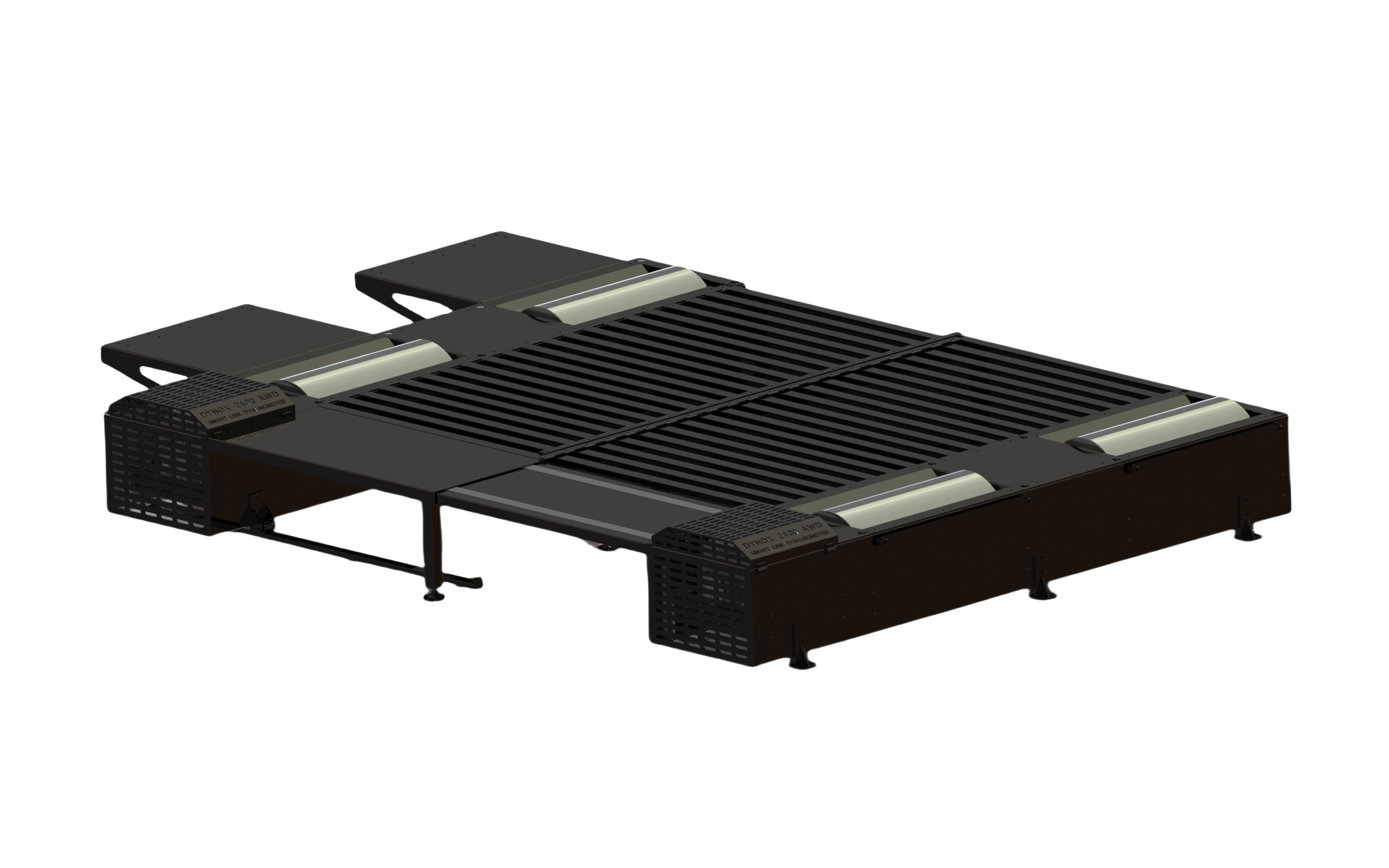

The 2400 AWD link chassis dyno was built for serious automotive performance tuners who want unmatched quality, capacity and data acquisition.
Configuration: 2400nm * 2 retarder, equipped with right angle bevel gearbox between the rollers, capable of achieving 50:50 speed synchronization，It has a unique link cut off function.
Electric Wheelbase Adjustment
The 2400AWD link dyno has electric push-button wheelbase adjustment to accommodate wheelbases from 2200 to 3400 mm. This allows vehicles to be placed in the proper location on the rolls for maximum traction every time. The 2400AWD accommodates track widths from 683 to 2400mm.
280km/h Mechanical Roll Synchronization
The 2400AWD chassis dyno includes all-wheel drive speed synchronization with a simple and reliable driveshaft connection between the front and rear rolls. This eliminates the chance of damaging center differentials and activating traction or stability control systems on the dyno. This driveshaft speed synchronization system is unique to DYNOX and the only one available that doesn’t have to be disconnected to test above 240km/h.
DYNOX speed synchronization can cut off link
You can select 2WD/ 4WD mode yourself. The 2400 AWD link system can cut off,Simple and fast operation.Is a unique feature of DYNOX.
Standard and Custom Test
Inertia tests: fast, accurate and extremely repeatable
Controlled acceleration tests: sweep test at user-defined acceleration rate provides a consistent load to simulate actual acceleration rates a vehicle will see in operation
Step testing: step through set RPM or MPH points at either wide open or partial throttle for quick and easy fuel mapping
Steady state: manually control the RPM or MPH for fuel and ignition timing mapping
Engine power test: coast down to quantify drivetrain losses and derive engine power
Detailed parameters
Roll Diameter:456mm
Peak Absorbed Power: 1600 HP
Maximum Torque Absorption: 2 X 2400Nm Total 4800Nm
Braking System: Air cooled retarder
Max Speed:280 km /h
Track Width:680mm inside – 2400mm outside (68 cm – 240 cm)
Dimension:419-327-50cm Wheelbase: (224 – 340 cm)
Air Requirements: 50-100 psi (345-690 kPa)
Power Requirements:220V
